Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: AOSI
  • Model Number: FEA2.5-XX-500-00
  • Number of Contacts: 1 - 10
  • Conductor Size: 22-14AWG
  • Type: Screw
  • color: green blue grey black white...
  • Dimensions: (approx.)10mm*10mm*7.5mm/0.4"*0.4"*0.3"
  • Rated voltage: 250V 300V
  • Wire guard: Phosphor bronze,Ni plated
  • Rated Current: 17.5A 15A
  • Wire range: 1.5 mm2
  • Contact resistance: 20mΩ
  • Length of pins: (approx.) 4.5mm/0.18"
  • Withstand Voltage: AC2000V/1Min
  • Pitch: 5.0mm

Packaging & Delivery

Packaging Details export carton
Delivery Time 3days

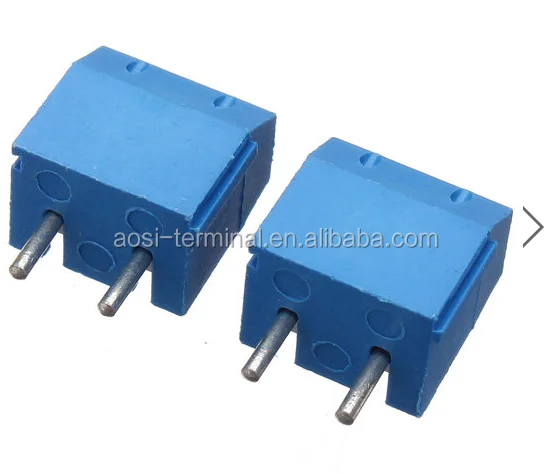

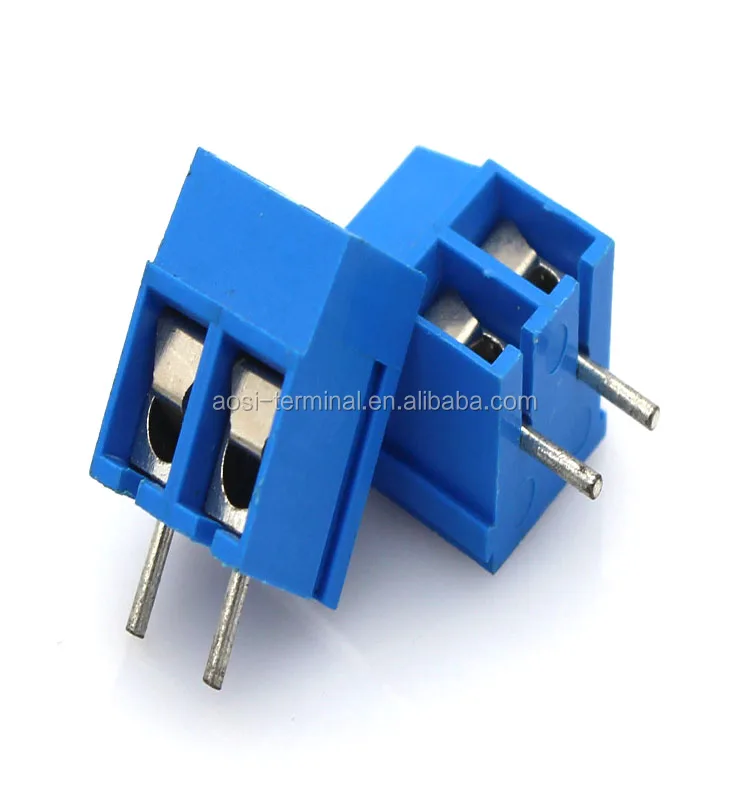

                        FEA2.5-XX-500-00 connectors block

Product Description

This is a very useful and practical accessory achieving electrical connection. For example, two wires needed to be connected, then you can use the terminal to get them connected. You can also disconnect at any time, without having to weld them together or intertwined, it is quick and easy.

Specifications
Brand:AOSI
Model:FEA2.5-XX-500-00

Dimensions: (approx.)10mm*10mm*7.5mm/0.4"*0.4"*0.3"
Length of pins: (approx.) 4.5mm/0.18"
Material:
Plastic part: PBT,UL94V-0
Screws part: M2.5, steel, Cr3+ plating color zinc passivated
Solder pin: Brass, tinning;reed, stainless steel
Reference Standard: UL IEC
Rated Voltage: 250V 300V
Rated Current: 17.5A  15A
Temp. Range: -30°C~+120°C
Wire range:22-14 AWG, 1.5 mm

Package included
50 x screw terminals




Material of connector terminals :



Drawing:
